Description

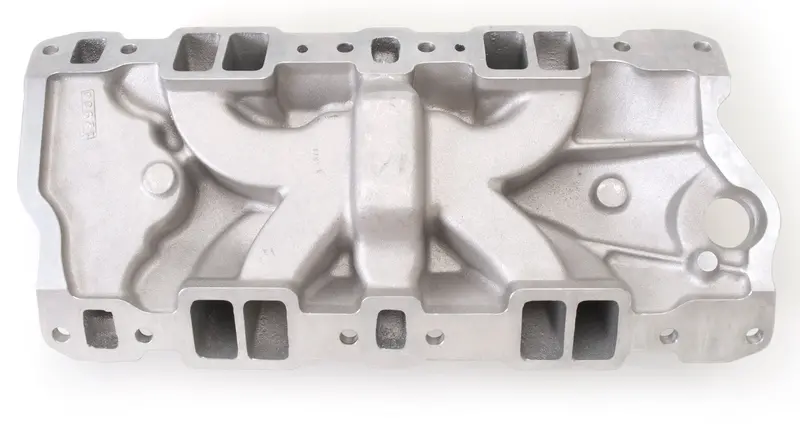

Edelbrock part #2701 Performer EPS intake manifold is designed for 1986 and earlier 262-400 cubic-inch Chevys. Edelbrock’s Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response. With that the Edelbrock Performer EPS intake manifold has a runner design that’s “tuned” for peak torque at 3500 rpm on a 350-inch engine making it ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. From 3000 to 4500 rpm, the power increases averaged 5+ ft-lbs. of torque for more performance where you need it most.
Installation Instructions
Specifications:
| Basic Operating RPM Range | Idle-5500 |
| Center Maximum Height | 4.270 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer EPS Intake Manifold for 1955-86 262-400 Small-Block Chevrolet V8, Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_EXT | Edelbrock Performer EPS Intake Manifold for 1955-86 262-400 Small-Block Chevrolet V8; Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | For Idle to 5500 RPM Street-Driven Performance |
| Description_FAB | Maximizes Peak Torque Around 3500 RPM |
| Description_FAB | Maximizes Performance with Edelbrock Carburetors |
| Description_FAB | Prod. +5 HP and +9 ft./lbs. of Torque Over PN[2101] |
| Description_FAB | Runner Design Tuned For Peak Torque |
| Description_INV | Performr EPS Intk Mnfld 1986 Earlier SBC |
| Description_KEY | 2701; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin |
| Description_LAB | Performer EPS Intake Manifold for 1955-86 Small-Block Chevy |
| Description_MKT | Edelbrock part #2701 Performer EPS intake manifold is designed for 1986 and earlier 262-400 cubic-inch Chevys. Edelbrock’s Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response. With that the Edelbrock Performer EPS intake manifold has a runner design that’s “tuned” for peak torque at 3500 rpm on a 350-inch engine making it ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. From 3000 to 4500 rpm, the power increases averaged 5+ ft-lbs. of torque for more performance where you need it most. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 9in.} |
| Description_TRA | Carb pad height: 4.27″ |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold ht: A-3.74″, B-4.80″ |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 1.15″ x 1.87″. |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Recommended intake gasket: Edelbrock #7201. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Will not fit under stock Corvette hood. |
| Description_TRA | • Manifold ht: A-3.74in.; B-4.80in. • Carb pad height: 4.27in. • Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm • Port exit dimensions: 1.15in. x 1.87in. • Recommended intake gasket: Edelbrock # 7201. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Will not fit under stock Corvette hood. • Even though manifolds are compatible with EGR systems; this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block (262-400) |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 3.740 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 5.7 |
| length | 22.5 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | N/A |
| Rear Maximum Height | 4.800 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | Idle -5500 |
| Series | Performer |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 16.85 |
| width | 10.5 |
